EXTEM(熱塑性聚酰亞胺)VH1003M/沙伯基礎/物性表參數

日期：2020-12-10 02:28:48 編輯：科思德塑膠來源：科思德塑膠瀏覽：610

SABIC(沙伯基礎)的EXTEM VH1003M是一種透明熱塑性聚酰亞胺(TPI)樹脂，該產品具有thinwall FR功能，并有一個UL94 V0防火，根據VDE/DIN 472第815部分，該材料符合RoHS，也不含鹵素。

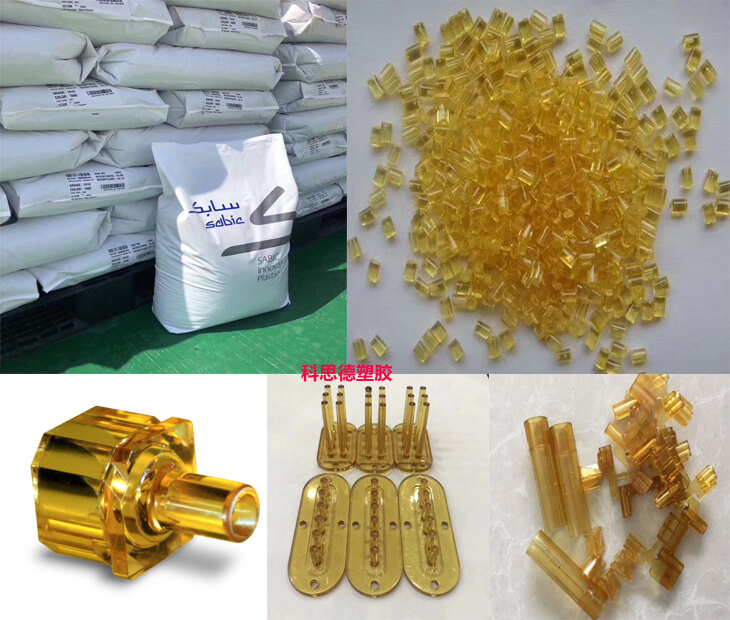

TPI VH1003M

以下是EXTEM(沙伯基礎)VH1003M/TPI(熱塑性聚酰亞胺)物性表參數

UL Recognized, 94V-0 Flame Class Rating		≥0.75	mm	UL 94
Glow Wire Flammability Index 960°C, passes at		3.2	mm	IEC 60695-2-12
Glow Wire Ignitability Temperature, 3.0 mm		850	°C	IEC 60695-2-13
Oxygen Index (LOI)		45	%	ISO 4589
MECHANICAL
Tensile Stress, yld, Type I, 5 mm/min		96	MPa	ASTM D 638
Tensile Stress, brk, Type I, 5 mm/min		96	MPa	ASTM D 638
Tensile Strain, yld, Type I, 5 mm/min		6	%	ASTM D 638
Tensile Strain, brk, Type I, 5 mm/min		50	%	ASTM D 638
Tensile Modulus, 5 mm/min		3510	MPa	ASTM D 638
Flexural Stress, brk, 1.3 mm/min, 50 mm span		158	MPa	ASTM D 790
Flexural Stress, yld, 2.6 mm/min, 100 mm span		155	MPa	ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span		3170	MPa	ASTM D 790
Tensile Stress, yield, 5 mm/min		95	MPa	ISO 527
Tensile Stress, break, 5 mm/min		78	MPa	ISO 527
Tensile Strain, yield, 5 mm/min		8.4	%	ISO 527
Tensile Strain, break, 5 mm/min		50	%	ISO 527
Tensile Modulus, 1 mm/min		3120	MPa	ISO 527
Flexural Stress, break, 2 mm/min		123	MPa	ISO 178
Flexural Modulus, 2 mm/min		3070	MPa	ISO 178
Ball Indentation Hardness, H358/30		138	MPa	ISO 2039-1
IMPACT
Izod Impact, unnotched, 23°C		NB	J/m	ASTM D 4812
Izod Impact, notched, 23°C		69	J/m	ASTM D 256
Izod Impact, notched, -30°C		74	J/m	ASTM D 256
Instrumented Impact Total Energy, 23°C		33	J	ASTM D 3763
Izod Impact, unnotched 80104 +23°C		196	kJ/m²	ISO 180/1U
Izod Impact, unnotched 80104 -30°C		147	kJ/m²	ISO 180/1U
Izod Impact, notched 80104 +23°C		6	kJ/m²	ISO 180/1A
Izod Impact, notched 80104 -30°C		5	kJ/m²	ISO 180/1A
Charpy 23°C, Unnotch Edgew 80104 sp=62mm		NB	kJ/m²	ISO 179/1eU
Charpy -30°C, Unnotch Edgew 80104 sp=62mm		NB	kJ/m²	ISO 179/1eU
THERMAL
Vicat Softening Temp, Rate B/50		242	°C	ASTM D 1525
HDT, 1.82 MPa, 3.2mm, unannealed		217	°C	ASTM D 648
HDT, 0.45 MPa, 6.4 mm, unannealed		237	°C	ASTM D 648
HDT, 1.82 MPa, 6.4 mm, unannealed		230	°C	ASTM D 648
CTE, -40°C to 150°C, flow		5.E-05	1/°C	ASTM E 831
CTE, -40°C to 150°C, xflow		5.E-05	1/°C	ASTM E 831
Thermal Conductivity		0.22	W/m-°C	ASTM E 1530
CTE, 23°C to 150°C, flow		5.E-05	1/°C	ISO 11359-2
CTE, 23°C to 150°C, xflow		5.E-05	1/°C	ISO 11359-2
Ball Pressure Test, 125°C +/- 2°C		Passes	-	IEC 60695-10-2
Vicat Softening Temp, Rate B/50		242	°C	ISO 306
Vicat Softening Temp, Rate B/120		240	°C	ISO 306
HDT/Af, 1.8 MPa Flatw 80104 sp=64mm		228	°C	ISO 75/Af
Relative Temp Index, Elec	¹⁾	160	°C	UL 746B
Relative Temp Index, Mech w/impact	¹⁾	120	°C	UL 746B
Relative Temp Index, Mech w/o impact	¹⁾	160	°C	UL 746B
PHYSICAL
Specific Gravity		1.3	-	ASTM D 792
Mold Shrinkage on Tensile Bar, flow		0.5-0.7	%	SABIC method
Mold Shrinkage, flow, 3.2 mm		0.5-0.7	%	SABIC method
Mold Shrinkage, xflow, 3.2 mm		0.5-0.7	%	SABIC method
Melt Flow Rate, 367°C/6.6 kgf		15.5	g/10 min	ASTM D 1238
Density		1.3	g/cm³	ISO 1183
Water Absorption, (23°C/saturated)		1.75	%	ISO 62-1
Moisture Absorption (23°C / 50% RH)		0.65	%	ISO 62
Melt Volume Rate, MVR at 360°C/5.0 kg		8	cm³/10 min	ISO 1133
ELECTRICAL
Dielectric Strength, in oil, 3.2 mm		14	kV/mm	ASTM D 149
Relative Permittivity, 100 Hz		3.38	-	ASTM D 150
Relative Permittivity, 1 kHz		3.37	-	ASTM D 150
Dissipation Factor, 50/60 Hz		0.018	-	IEC 60250
Dissipation Factor, 100 Hz		0.008	-	IEC 60250
Dissipation Factor, 1 kHz		0.001	-	IEC 60250
Dissipation Factor, 1 MHz		0.007	-	IEC 60250
Comparative Tracking Index		175	V	IEC 60112
Comparative Tracking Index (UL) {PLC}		3	PLC Code	UL 746A
Hot-Wire Ignition (HWI), PLC 1		≥3	mm	UL 746A
Hot-Wire Ignition (HWI), PLC 2		≥0.75	mm	UL 746A
High Amp Arc Ignition (HAI), PLC 4		≥0.75	mm	UL 746A
Injection Molding
Drying Temperature		150	°C
Drying Time		4-6	hrs
Drying Time (Cumulative)		24	hrs
Maximum Moisture Content		0.02	%
Melt Temperature		380-405	°C
Nozzle Temperature		375-400	°C
Front - Zone 3 Temperature		380-405	°C
Middle - Zone 2 Temperature		370-395	°C
Rear - Zone 1 Temperature		360-380	°C
Mold Temperature		135-165	°C
Back Pressure		0.3-0.7	MPa
Screw Speed		40-70	rpm
Shot to Cylinder Size		40-60	%
Vent Depth		0.025-0.076	mm

1)UL Ratings shown on the technical datasheet might not cover the full range of thicknesses and colors. For details, please see the UL Yellow Card.
